HULK Motor Lead Extension Guards

Available for Every Major ESP Pump Brand

  • HULK MLE Guard for 7"

    Available in 316 or 4140 Alloy

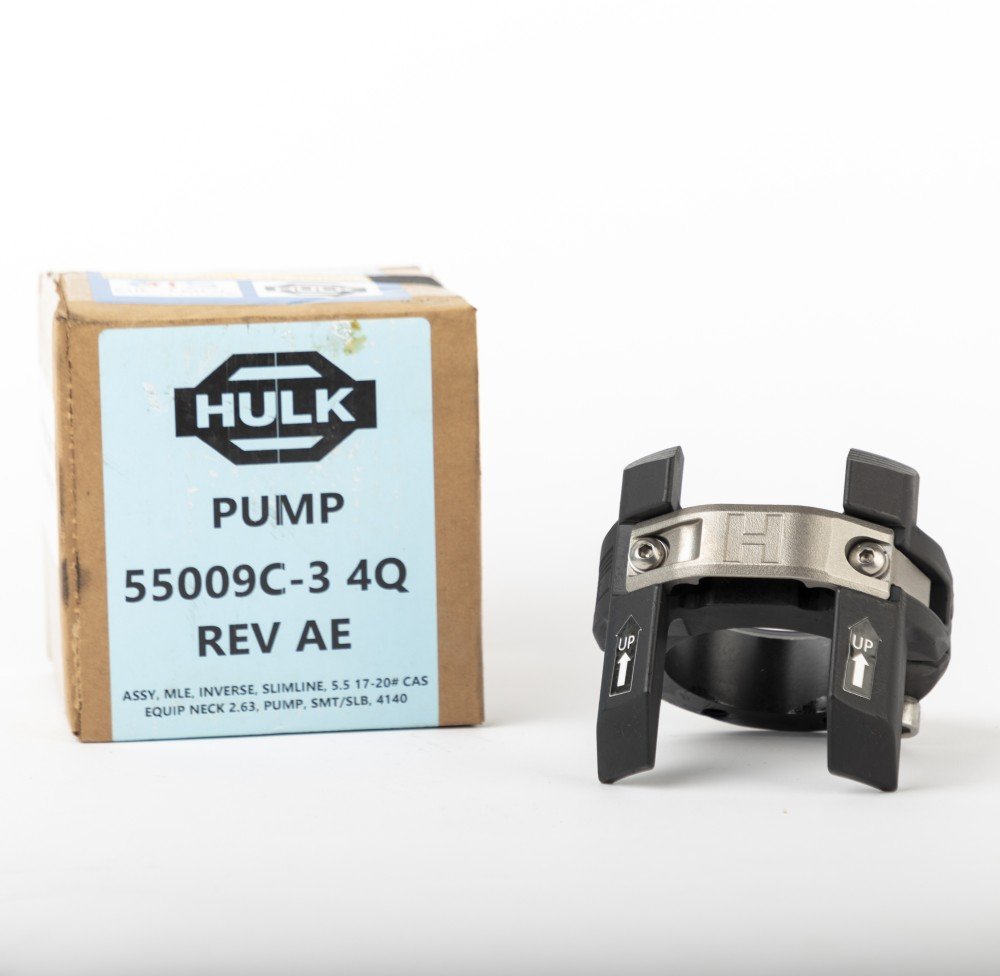

  • HULK SlimLine for 5-½“

    Available in 316 or 4140 Alloy

  • HULK ULTRA SlimLine for 5-½ 23#

    Available in 316 or 4140 Alloy

  • HULK MLE Guard for 500 Series

    Available in 316 or 4140 Alloy

  • Built to Suit

    Contact us with your needs to get started!

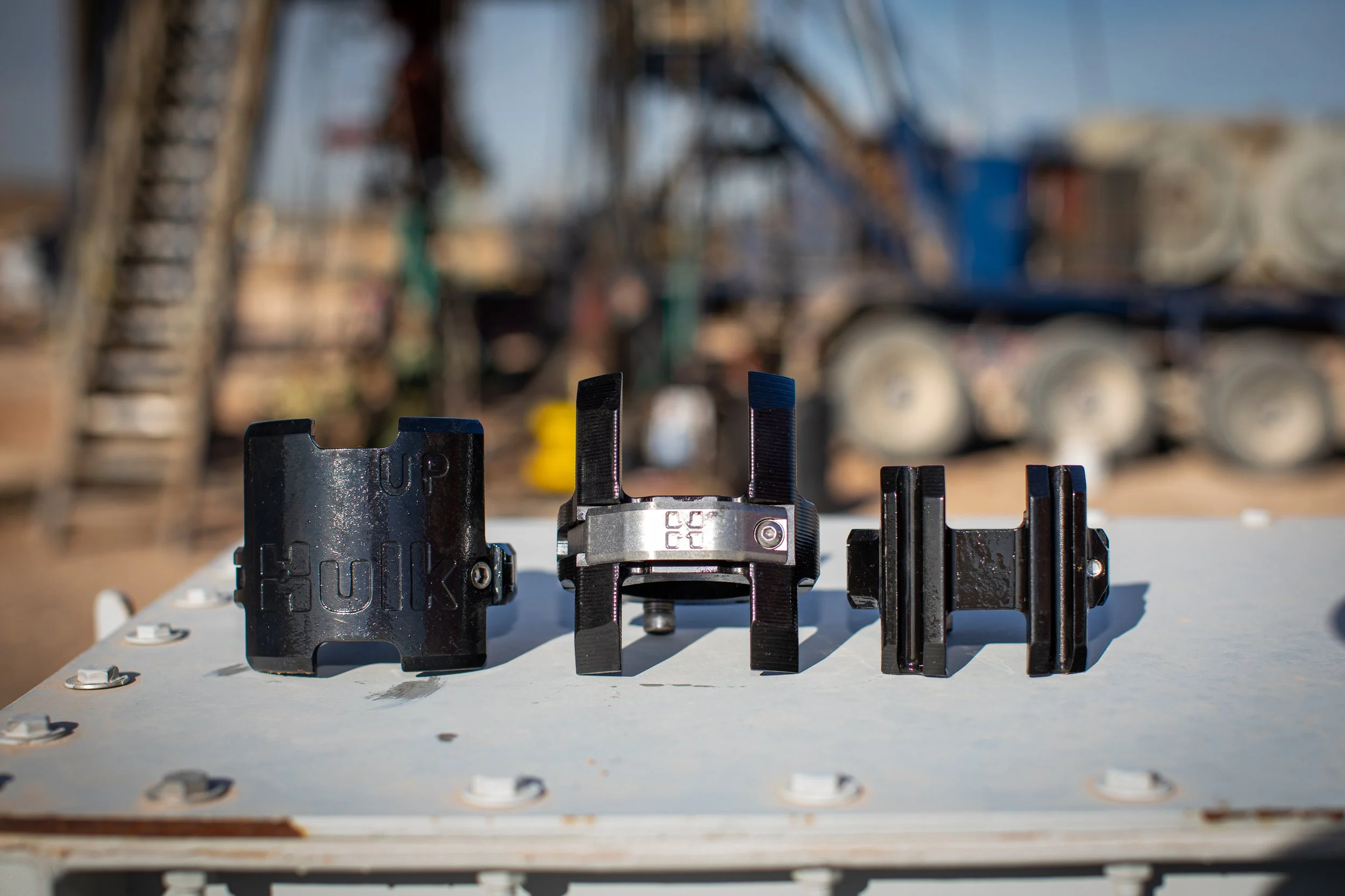

HULK Designs MLE Guards for the Toughest Conditions

HULK understands tough well conditions and deviations. We have designed our MLE product line to satisfy all your needs in unconventional wellbores. Our high-quality motor lead guards can withstand the most demanding applications and will extend the life of your cable and ESP.

Here is what you can expect from HULK MLE Guards:

    • Significantly improved door design capable of carrying 10,000 lbs., safely allowing installations into the horizontal

    • Axial profile designed for smooth installation while still being rated for 10,000 lb. loadings

    • Bias bolts as backups for impacts and loadings in excess of 10,000 lbs

    • Forces equipment string at least 0.75” away from casing, increasing MLE clearance

    • Substantial resistance to rotation with a backup anti-rotation bolt Built for multiple installations, quick refurbishment

    • Bed accommodates MLE cable thermal expansion

    • Available for 7 inch and 5.5 inch wellbores

    • Available in 316L stainless steel – passivated or 4140

    • 316L SS bolts or upgrade to titanium for toughest conditions

    • Anti-rotation mechanism with backup

    • Bias bolts to prevent axial shifts

    • Heavy-duty door for maximum cables

    • Concealed beds for cable and two 3/8” cap tubes

HULK MLE Guards are Inherently Stronger than the Competition!

  • Integrated Cable Cover Design for 7"

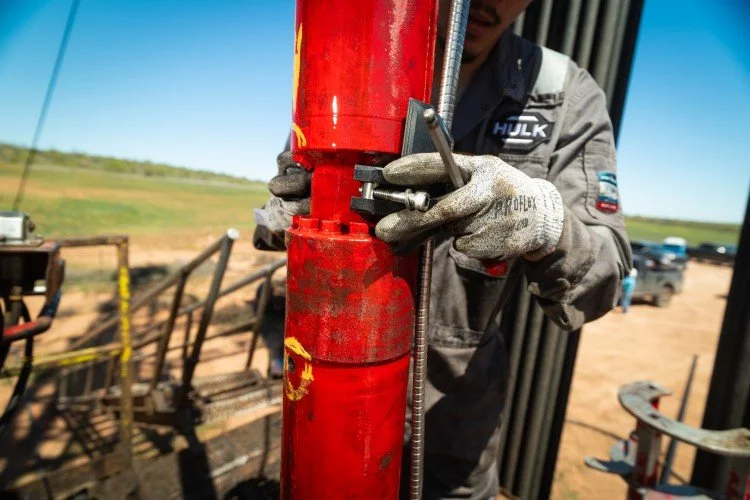

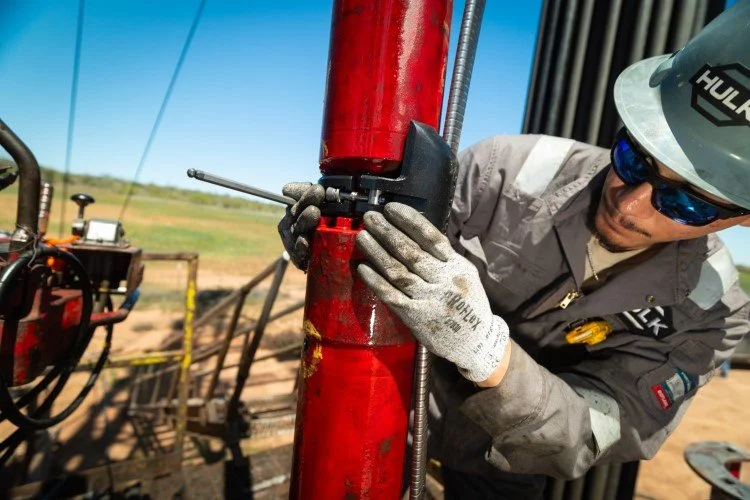

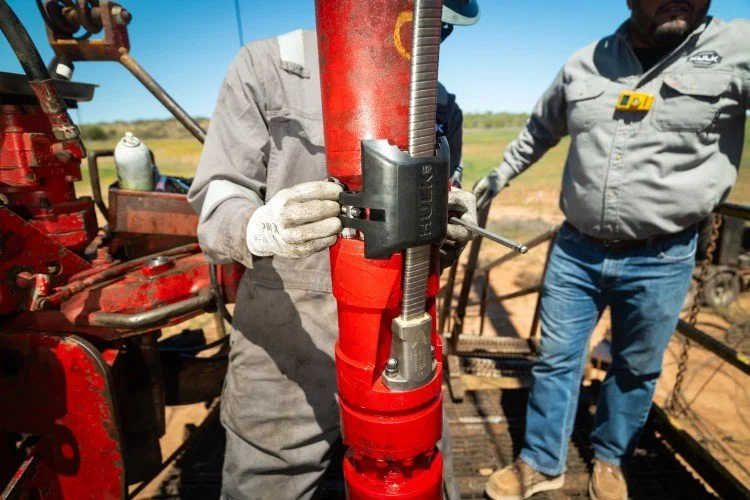

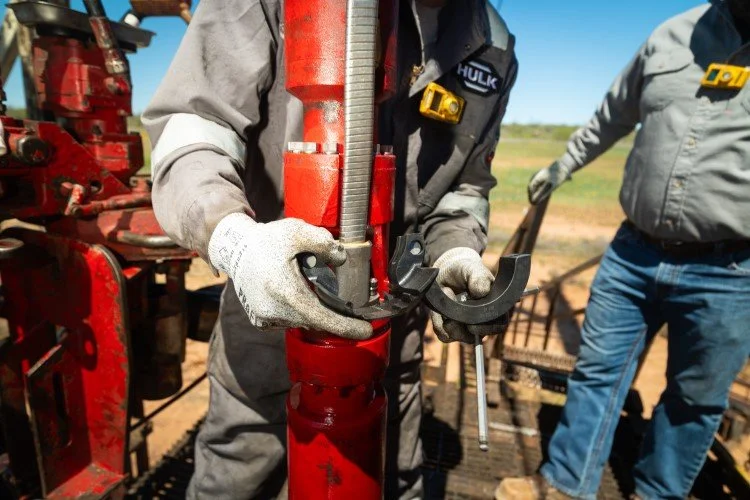

    HULK MLE Guards for 7” have cable doors integrated with the clamp around the pump neck. This durable design keeps the MLE away from the casing.

  • Integrated Cable Guard Rails for 5-1/2"

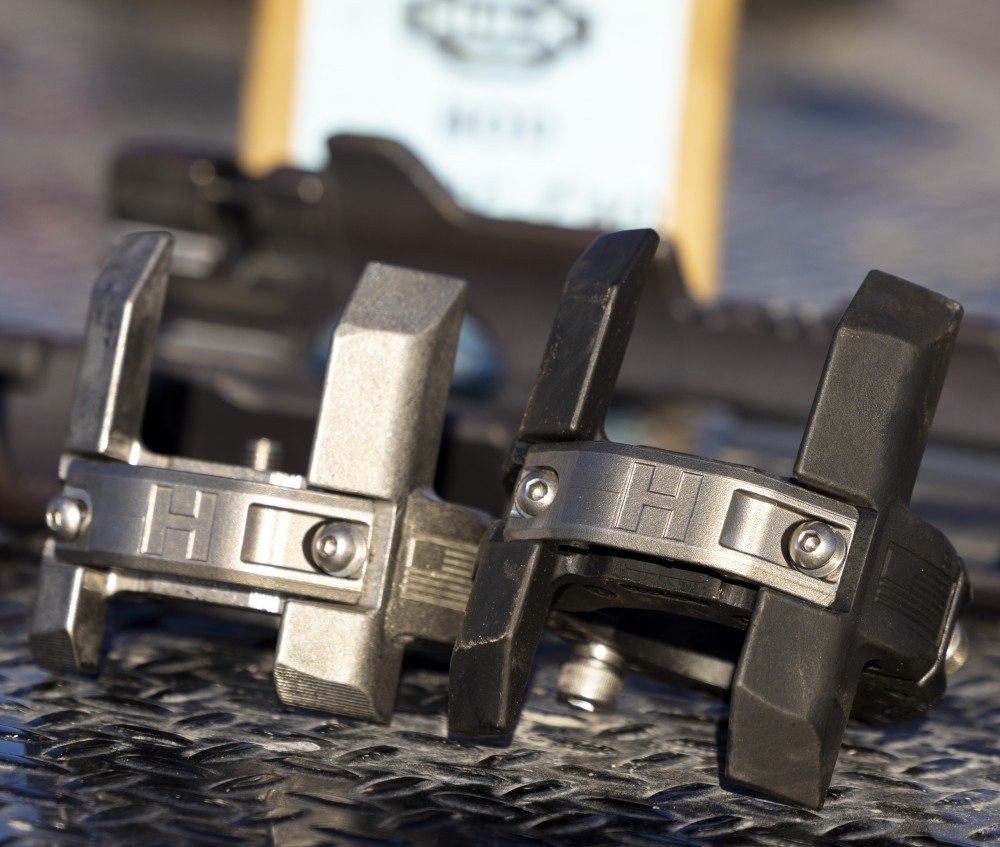

    In tighter wells, HULK MLE Guards for 5 ½” have cable guardrails milled out of the piece of metal that goes around the neck. These rails are integral to the clam and impact resistant.

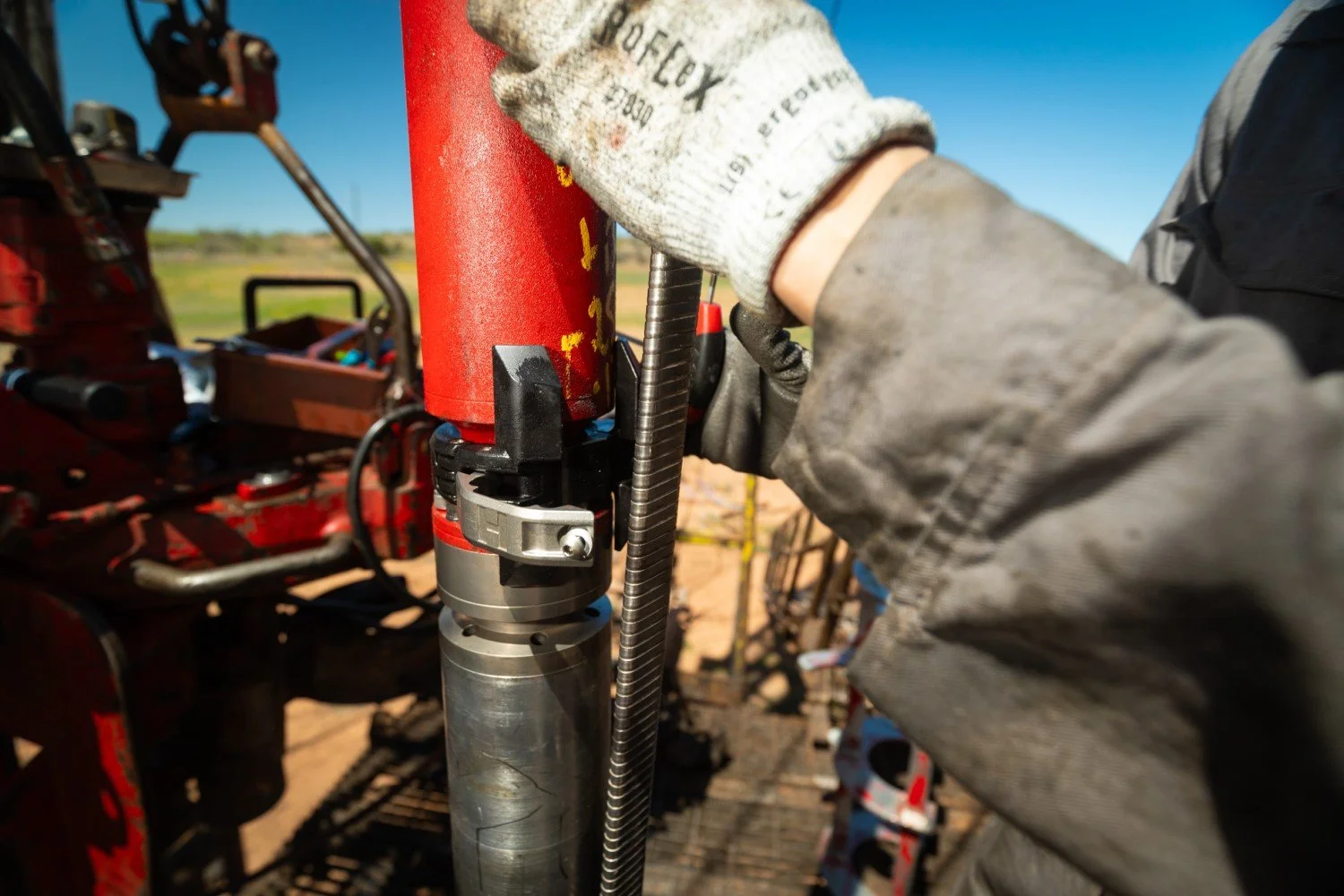

Product Quality and In-field Performance

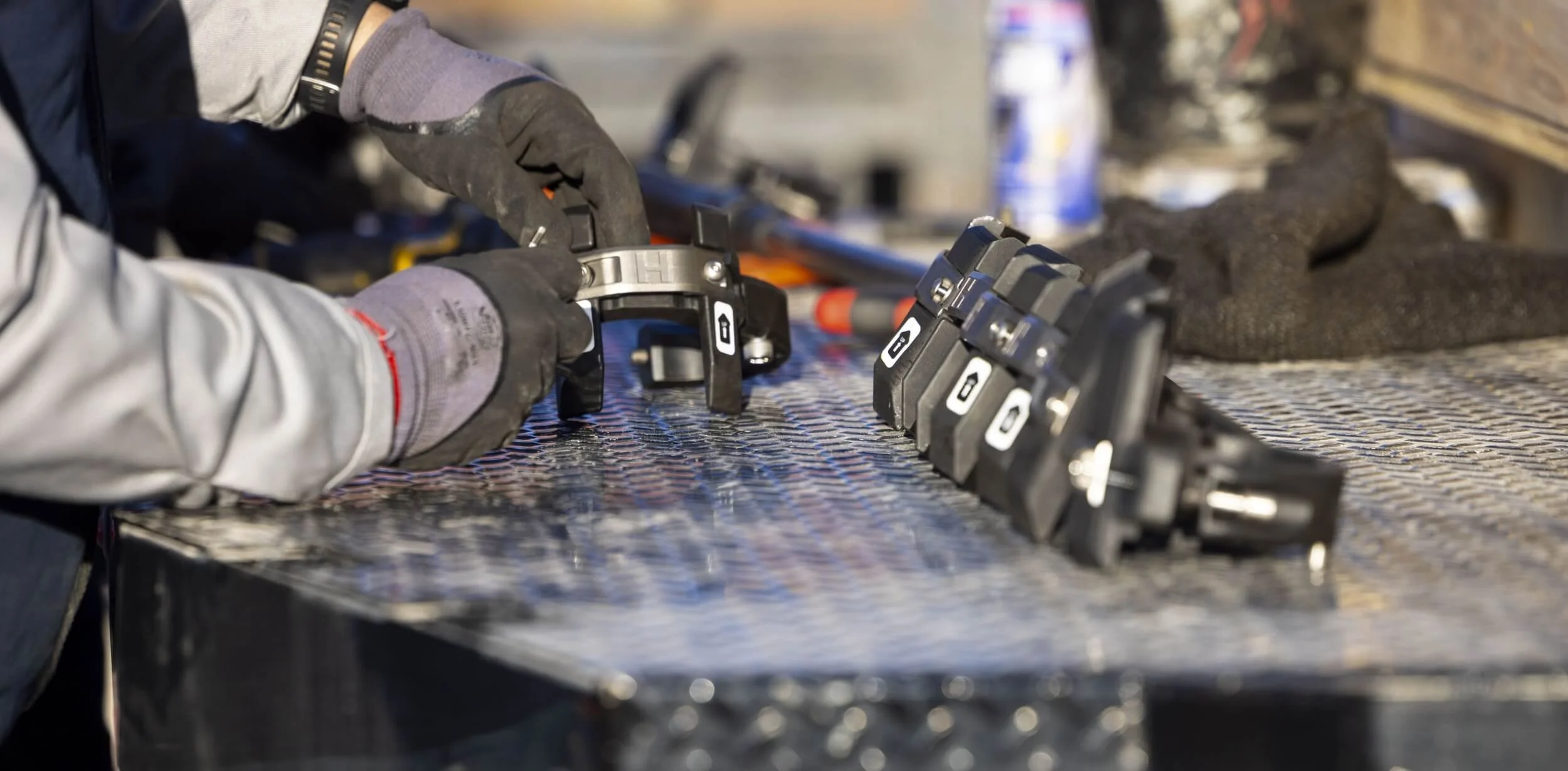

HULK provides MLE protection with the same engineering approach and quality construction as all of our product lines. Each HULK MLE guard is individually checked and tested on in-house pump necks before being packed to ensure fit.

HULK MLEs are compatible with all ESP brands, including:

  • Summit

  • Halliburton

  • Extract

  • NOV

  • Endurance

  • Baker Hughes

  • Schlumberger

  • Valiant

  • Champion X

  • Borets

  • Novoment

  • Levare

HULK is a solutions provider. If you have a unique need for custom MLE guards or any other product, please contact us and let us know. No matter the size of your issue, HULK will deliver a solution: Call 307-699-3198

CONTACT HULK FOR INDUSTRY LEADING UNCONVENTIONAL WELLBORE SOLUTIONS
