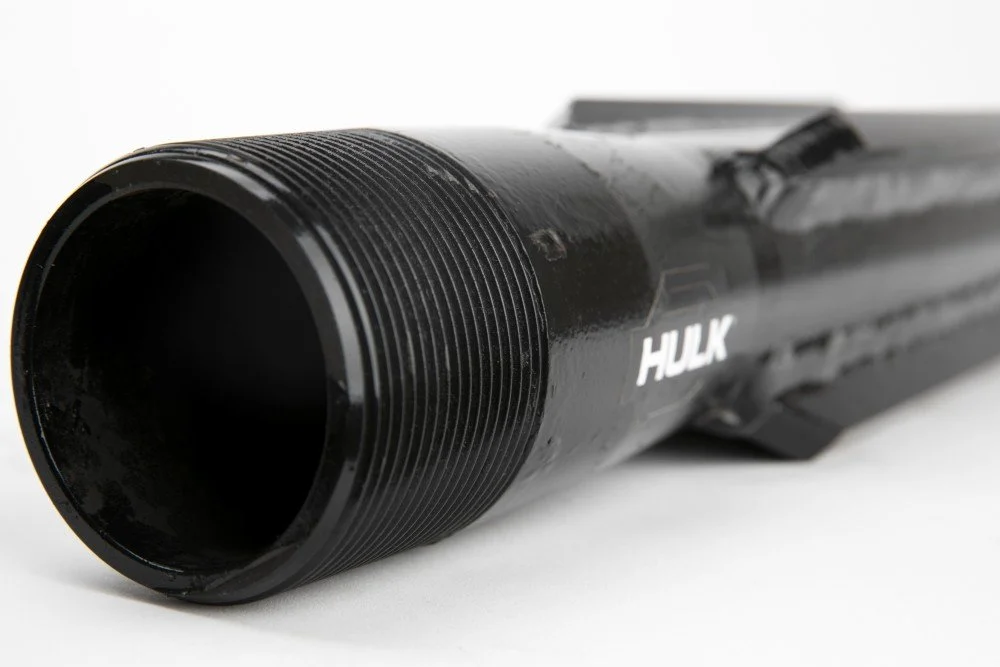

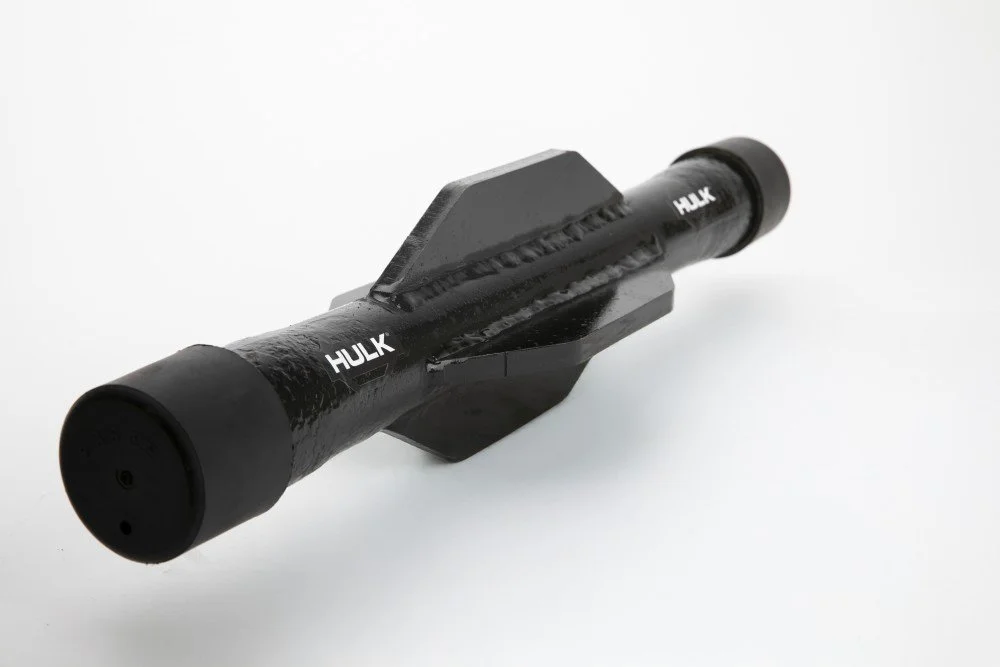

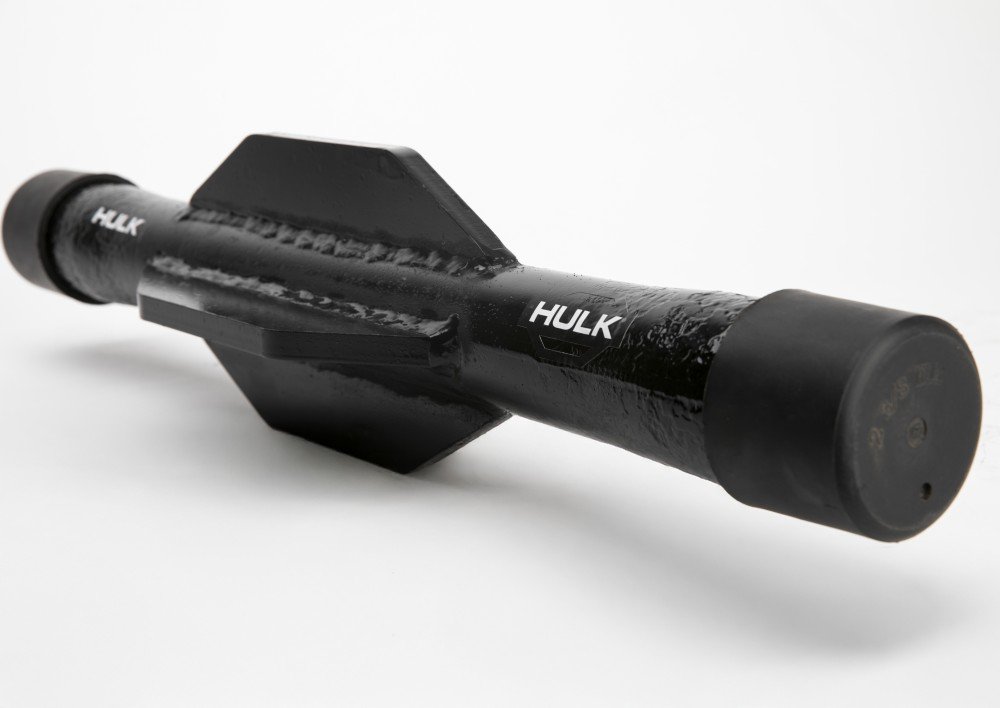

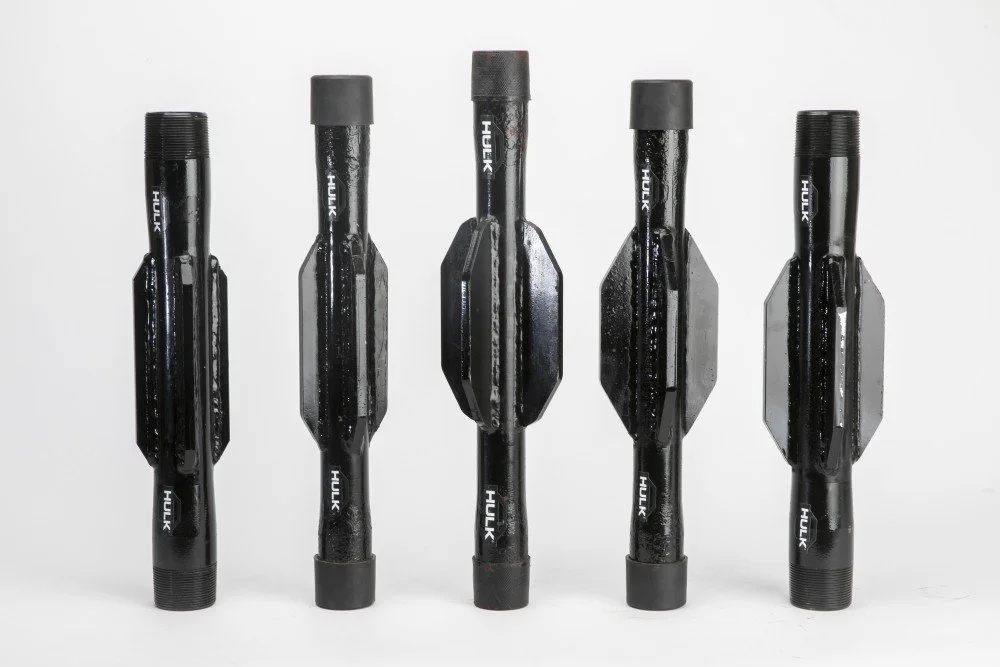

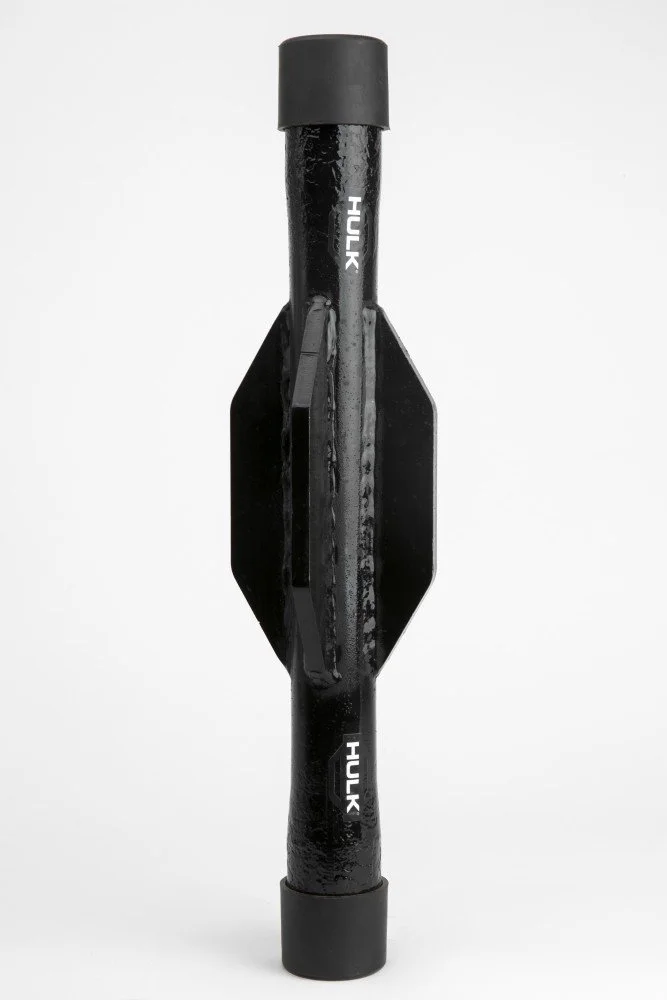

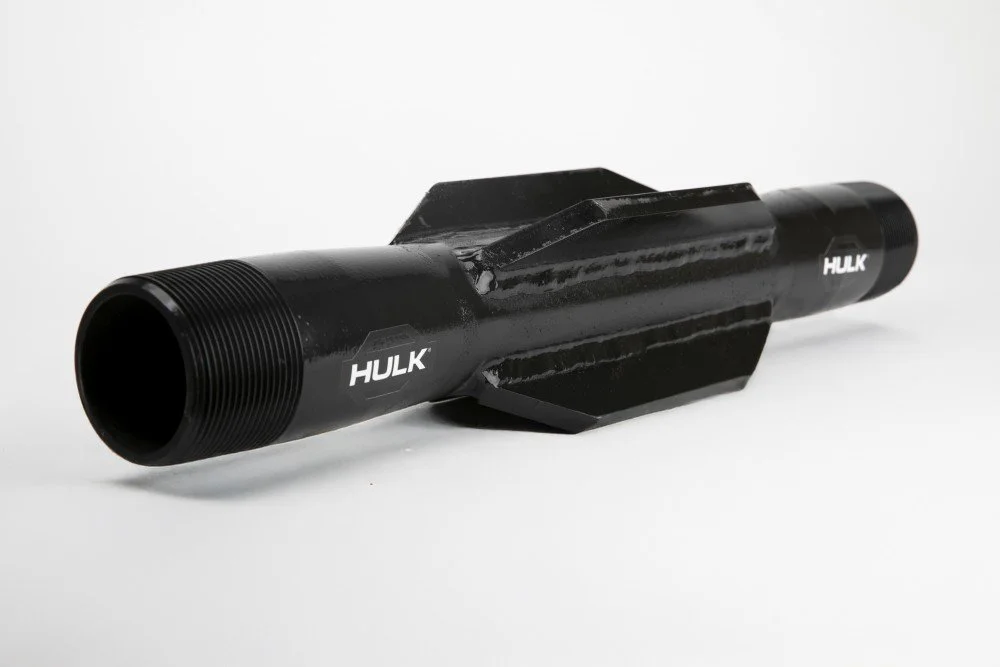

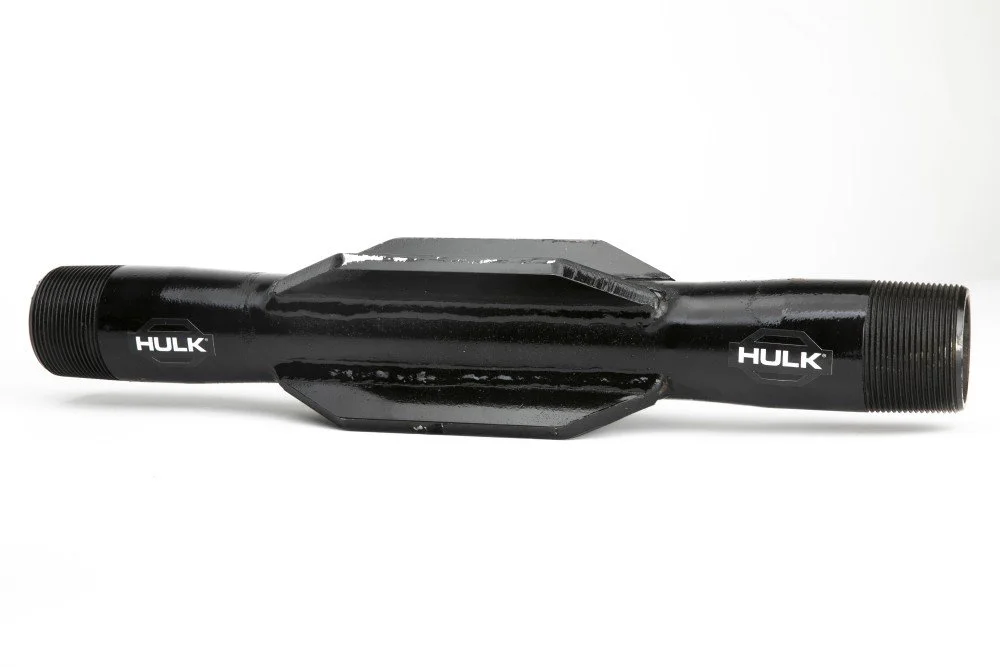

HULK Centralizers
Protection in Unconventionals
HULK Centralizer Benefits
Bulk design built to take a beating
Withstand tremendous impacts without shattering
Designed to deflect load

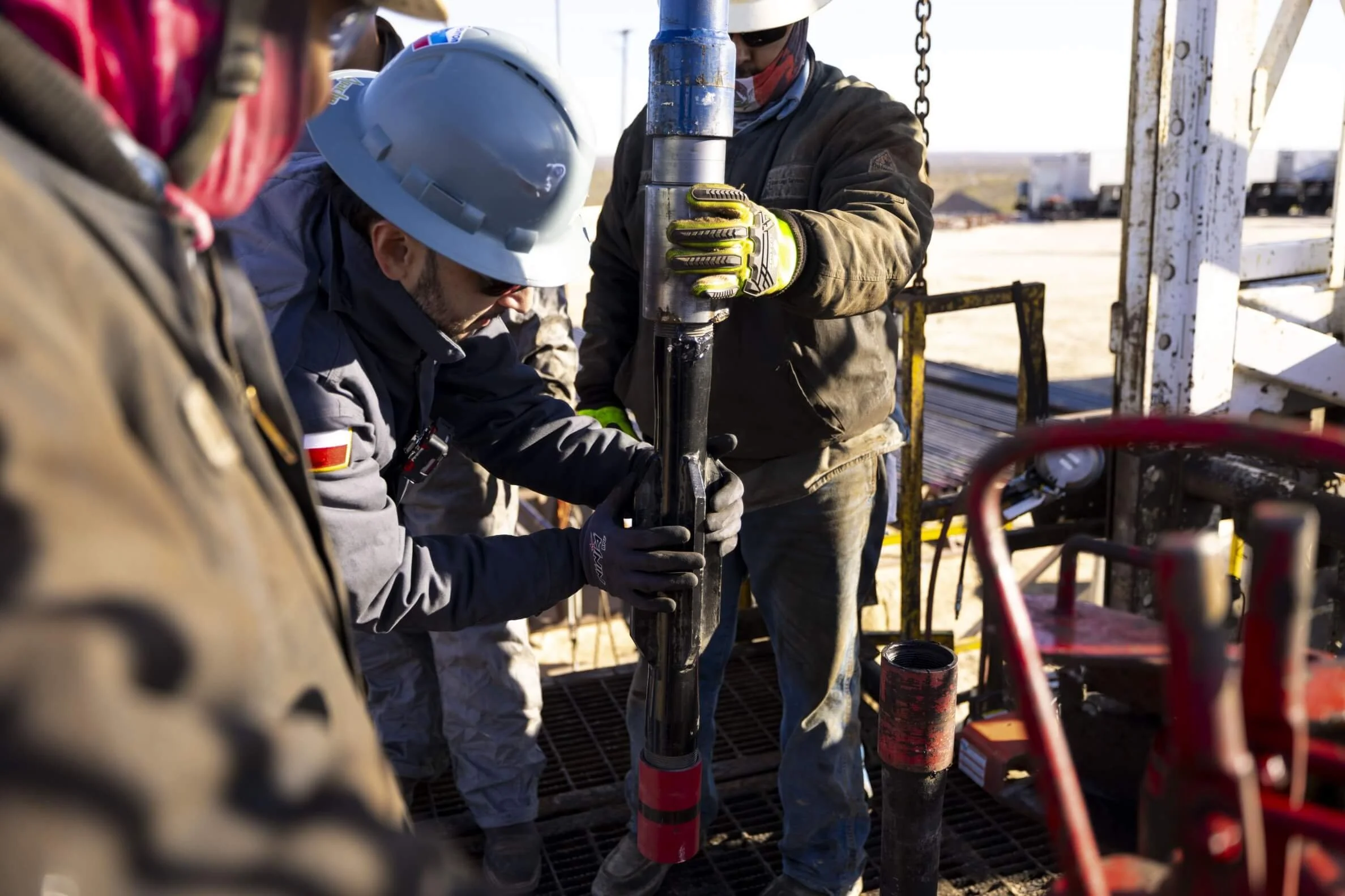

Quick & easy installation
No loose parts to drop downhole
Built for multiple reruns
Built to withstand extreme thermal conditions
SPECS

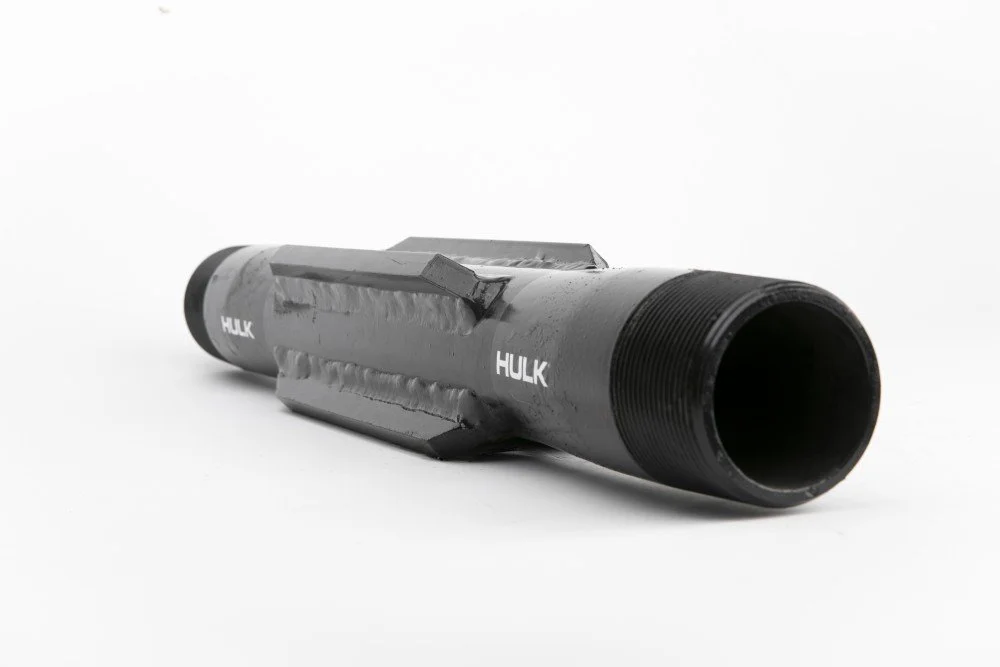

L-80 PUP joint tubing

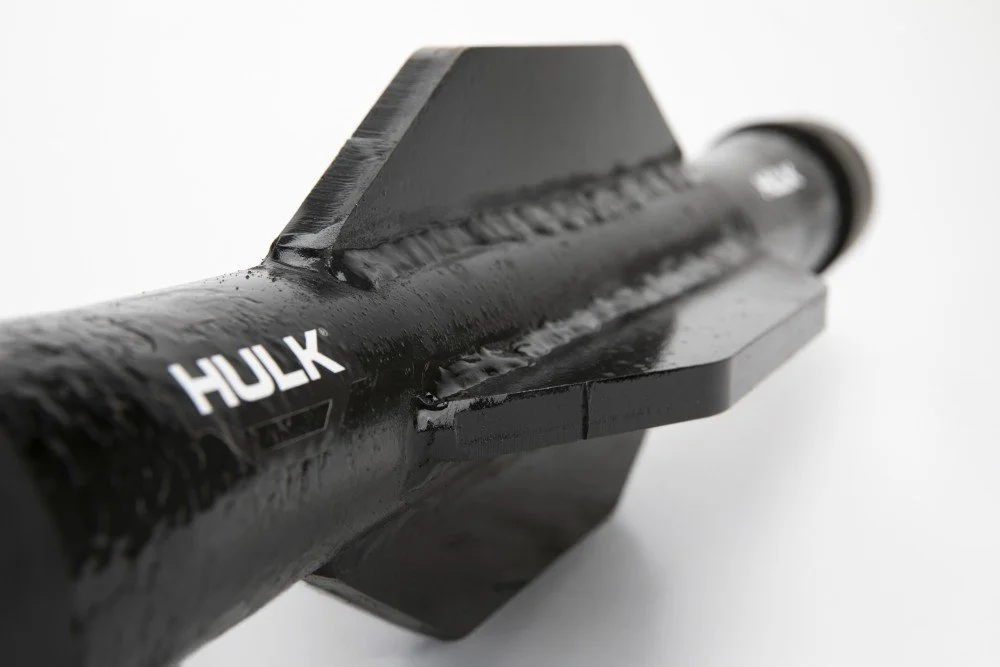

4 heavy duty fins welded to L-80 tubing
Centralizer comes with 1⁄2” and 3⁄4” fins
5.75” and 5.85” centralizer OD in stock
Custom ODs available upon request
Single assembly design with no loose parts
APPLICATIONS
Centralizer with robust fins built for tough and ultra tough applications
Unconventional horizontals – high DLS and tangents
ESP equipment protection in Deviated and inclined wells

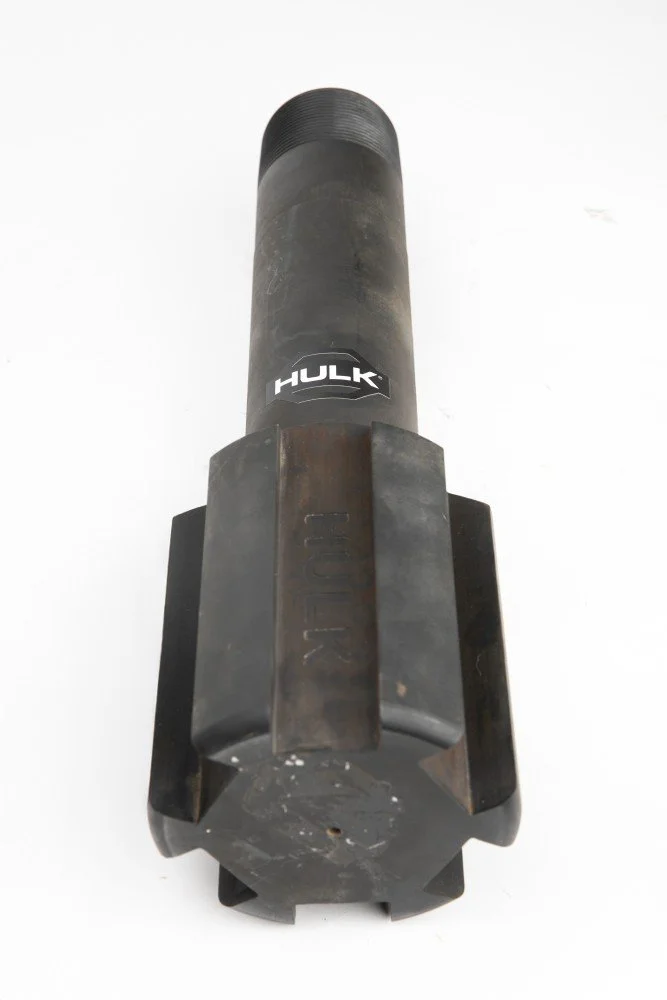

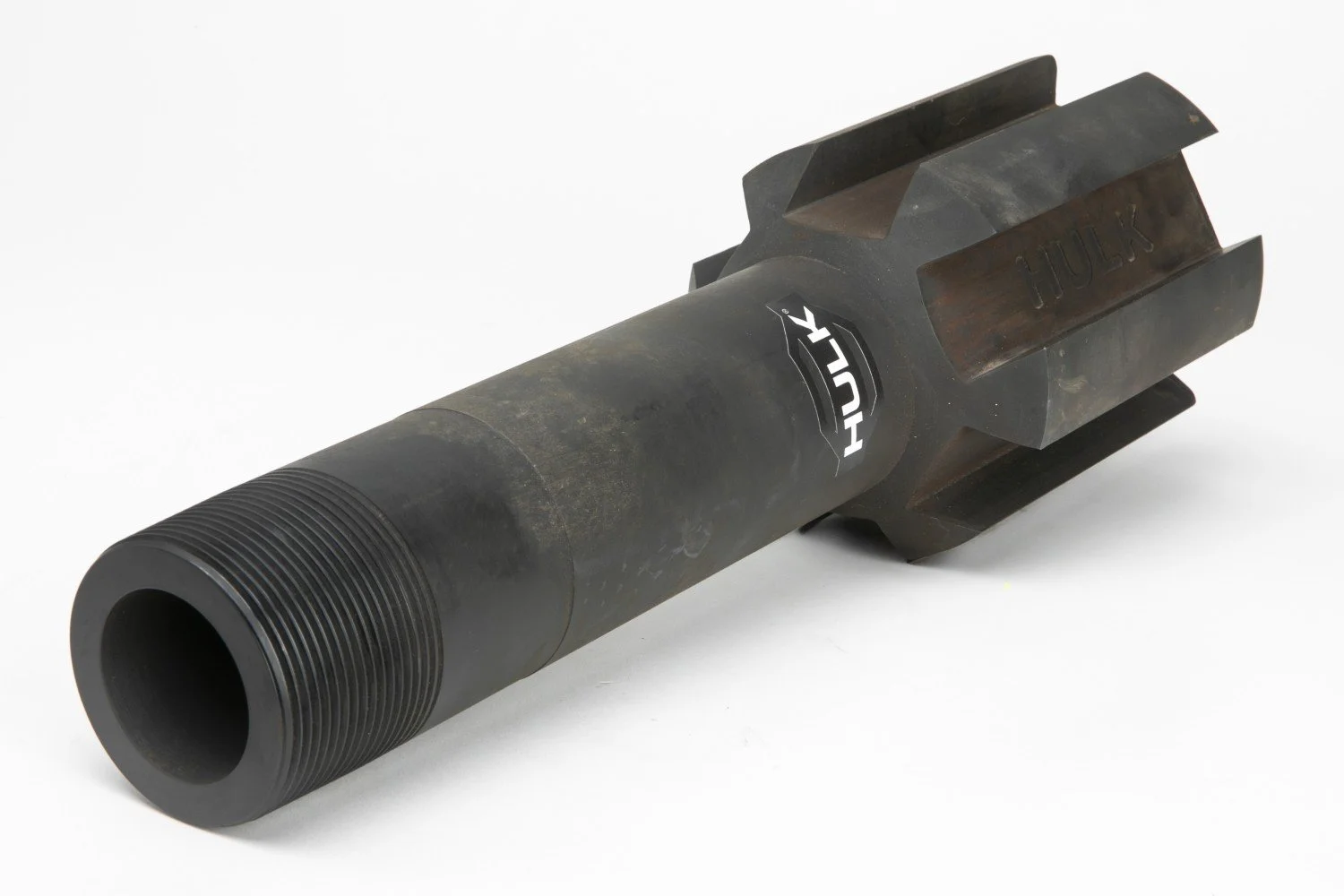

No-Go Centralizer
Prevents the ESP Assembly from Falling Into the Liner in the Event of a Separation
Benefits:
Available in Bull-Plug style and Tubing style
Built for harsh conditions
Prevents ESP assembly from falling into the liner
Facilitates fishing
Open flow channels allows for communication
| Version | Designed For | Availability |
|---|---|---|
| CENTRALIZER, WELDED | 4.5 MAX O.D., 2-3/8" EUE PIN X PIN, 5.50" 23# CSG | In Stock |
| CENTRALIZER, WELDED | 5.85 MAX O.D., 2-3/8" EUE PIN X PIN, 7" 32# CSG | In Stock |
| CENTRALIZER, WELDED | 5.75 MAX O.D., 2-7/8" EUE PIN X PIN, 7" 32# CSG | In Stock |
| CENTRALIZER, WELDED | 5.85 MAX O.D., 2-7/8" EUE PIN X PIN, 7" 32# CSG | In Stock |
| CENTRALIZER, WELDED | 6.631 MAX O.D., 2-3/8" EUE PIN X PIN 7-5/8" 29.7# | In Stock |
| CENTRALIZER, WELDED | 4.53 MAX O.D., 2-7/8" EUE PIN X PIN, 5.5" 20# CSG | In Stock |
| CENTRALIZER, WELDED W/ADAPTER | 5.75 MAX O.D., 2-3/8" EUE PIN UP X 2-7/8" EUE BOX DOWN | In Stock |
| NO-GO PLUG | 2-7/8" EUE PIN UP, 4.50 OD, 4140 (80KSI), QPQ, 5.5" 17-23# CSG | In Stock |
| NO-GO PLUG | 2-7/8" EUE PIN UP, 5.50 OD, 4140 (80KSI), QPQ, 7.0" 29-42# CSG | In Stock |
| NO-GO CATCHER | 3-1/2" EUE BOX UP X PIN DOWN, 5.055 OD, 4140 (80KSI), NICKEL PLATED, 7.0" 32# CSG | In Stock |
